Screenshots - Disk 5

Below are some screenshots from Disk 5.

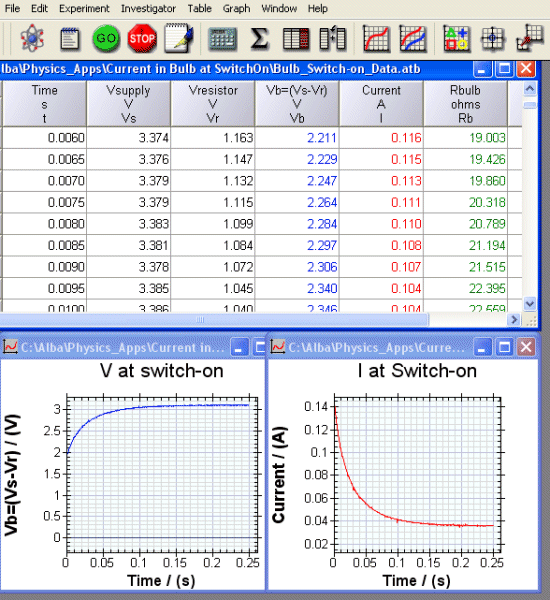

Current in a bulb at switch-onBulb at switch-on

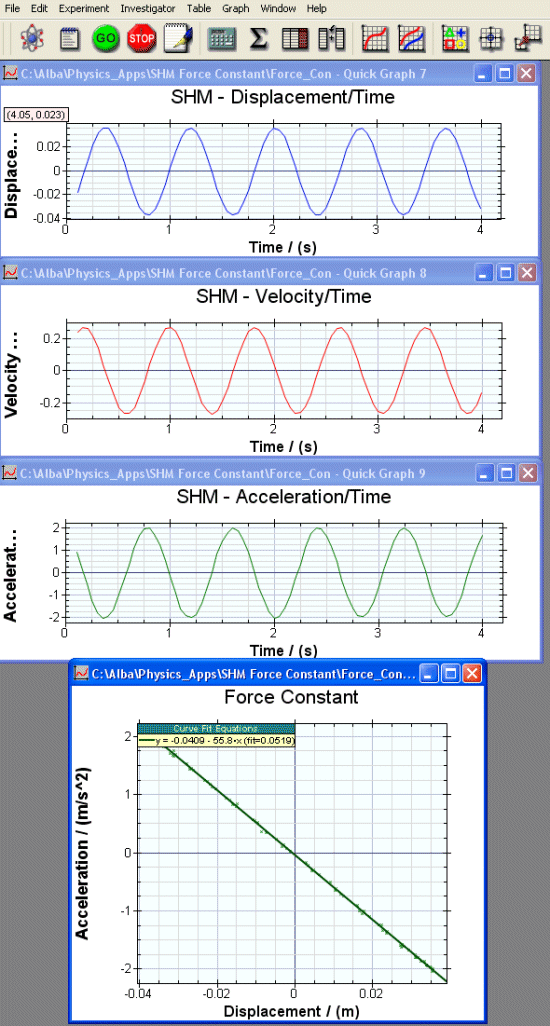

Simple Harmonic Motion using ALBA RangerSimple Harmonic Motion using ALBA Ranger. The a/s graph enables the force constant of the spring to be determined.



Specific Heat Capacity - WaterSpecific Heat Capacity - Water

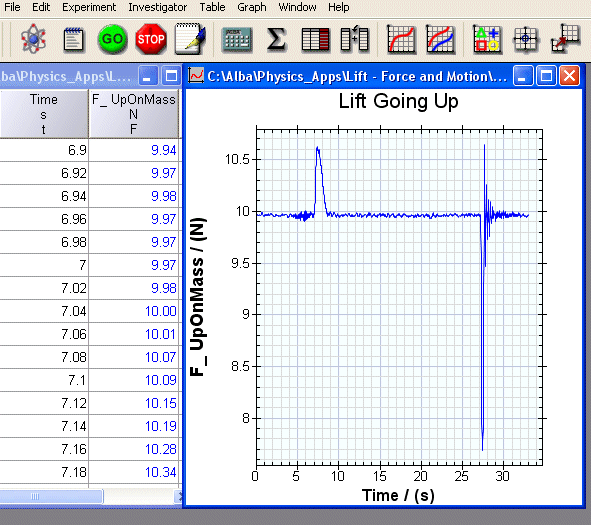

Lift Going Up1kg mass suspended from a Force Sensor in a lift

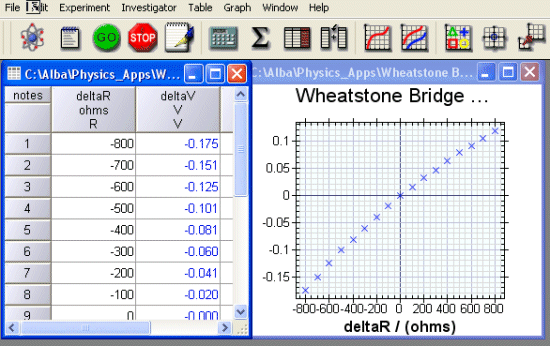

Wheatstone BridgeOut-of-balance Wheatstone Bridge

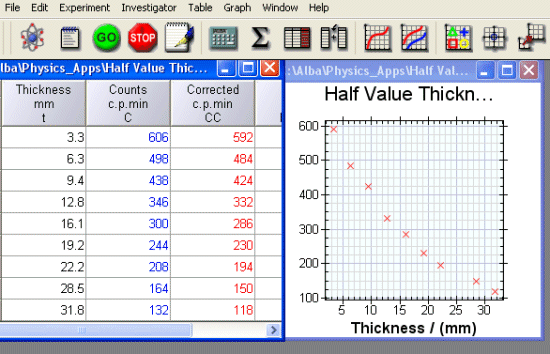

Half Value Thickness of leadHalf Value Thickness of Lead

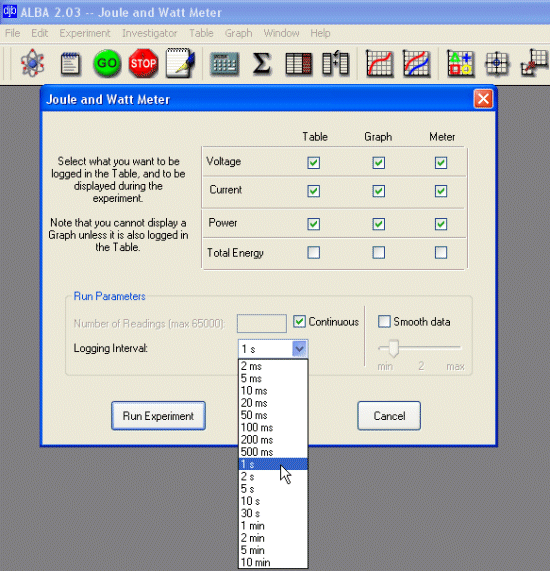

Joule & Watt Meter setup screenJoule & Watt Meter setup screen
