Current in a Bulb at Switch-on

Back

Bulb at switch-on, A1-1070.00, £26.80

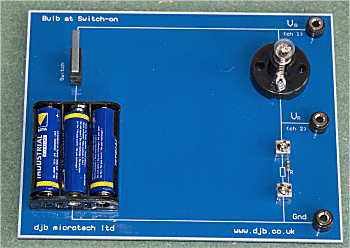

Current in a Bulb at Switch-onThis is intended for use with the Application on Disk 5 which gives displays of current and voltage when the bulb is switched on.

Supplied with batteries and 6V lamp.

The board is supplied with a 10R resistor but users may replace this with their own value. Knowing the voltage across this resistor allows the current to be calculated.

View video

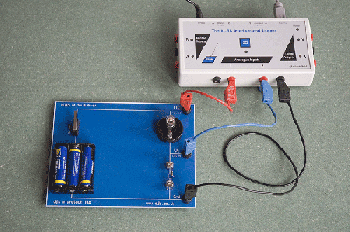

ConnectedBoard connected to ALBA.















Typical Results
Voltage/Time Graph Current/Time Graph
