Inductor Investigations Board, A1-1060.00, £33.95

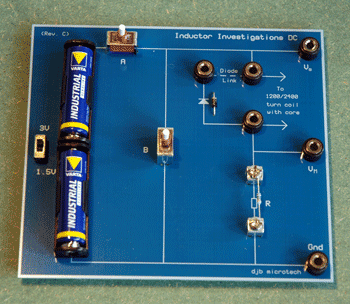

Inductor Investigations BoardThis board offers protection to the ALBA Interface inputs when studying inductors. The board can be used to study growth and decay of current and also the voltage at switch-on. The board is intended for use with the ALBA Interface and Logger and the software Applications on Disk 4.

The board is supplied with batteries and the voltage can be switched between 1.5 V and 3.0 V.

The board requires the use of an external coil and C-cores.



View video

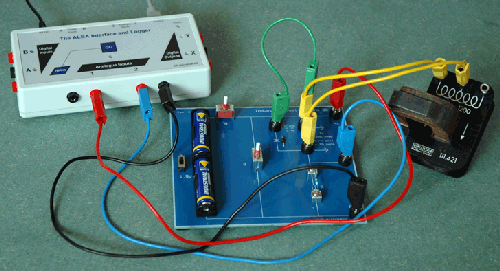

Inductor Investigations Circuit
